The Price Pump AOD (Air Operated Diaphragm) Pumps are double acting mechanically actuated, air driven pumps, and feature dry self-priming, solids handling ability and dry-run capability. However, what makes the Price Pump AOD superior to other brands is our Phenolic ‘Posi-Shift’ air-valve design. The Posi-SHift air valve does not require lubricated air, does not stall at low-flow conditions, and does not lock-up when the pump air line is closed off and then reopened. It is designed to have reduced freeze-up on the valve discharge. Stalling air-valves are the single biggest complaint with an AOD, and the Price Pump design simply works better.
Price AOD Pumps are ideal for applications pumping paint, coatings, latex adhesives, plating chemicals, fruit concentrates, dewatering applications, and even pumping fine dry powders.
Pumps are offered in 7 size models, in both metallic and plastic construction.
1/4” Size Pumps
Max Flow Rate: 3.4 GPM
Max Shut-Off Head: 230 Feet
Max Air-Pressure: 100 psi
Max Dry Lift: 5 feet
Max Solid Size: 0.100”
Metallic: Aluminum, 316 Stainless Steel
Non-Metallic: Polypropylene, Kynar (PVDF)
Elastomers and Balls: Teflon

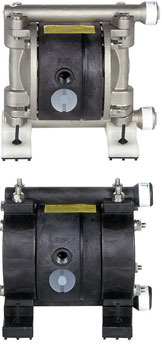

Price Pump AOD 1/4” Metal
Price Pump AOD 1/4” Non-Metallic
1/4” AOD Metallic Performance Curve
1/4” AOD Plastic Performance Curve
1/2” Size Pumps
Max Flow Rate: 15 GPM
Max Shut-Off Head: 230 Feet
Max Air-Pressure: 100 psi (125 psi for plastic)
Max Dry Lift: 5 feet (21 feet for plastic)
Max Solid Size: 0.031” (0.125” for plastic)
Metallic: Aluminum, 316 Stainless Steel
Non-Metallic: Polypropylene, Kynar (PVDF)
Elastomers and Balls: Neoprene, BUNA-N, Viton, Nordel, Teflon, Santoprene

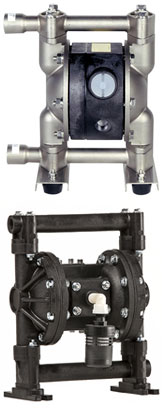

Price Pump AOD 1/2” Metal
Price Pump AOD 1/2” Non-Metallic
1/2” AOD Metallic Performance Curve
1/2” AOD Plastic Performance Curve
3/4” Size Pumps
Max Flow Rate: 27.3 GPM
Max Shut-Off Head: 230 Feet
Max Air-Pressure: 100 psi
Max Dry Lift: 18 feet
Max Solid Size: 0.062”
Metallic: Aluminum, 316 Stainless Steel
Non-Metallic: Polypropylene
Elastomers and Balls: Neoprene, BUNA-N, Viton, Nordel, Teflon, Santoprene

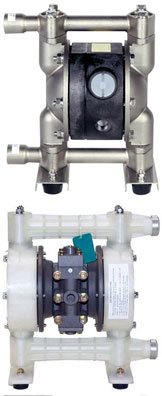

Price Pump AOD 3/4” Metal
Price Pump AOD 3/4” Non-Metallic
Price Pump AOD ¾” Non-Metallic w Teflon
3/4” AOD Performance Curve
3/4” AOD w Teflon Performance Curve
1” Size Pumps
Max Flow Rate: 50 GPM
Max Shut-Off Head: 250 Feet
Max Air-Pressure: 125 psi
Max Dry Lift: 18 feet (25 for non-metallic)
Max Solid Size: 0.125” (0.187” for non-metallic)
Metallic: Aluminum, Cast Iron, 316 Stainless Steel
Non-Metallic: Polypropylene, Kynar (PVDF)
Elastomers and Balls: Neoprene, BUNA-N, Viton, Nordel, Teflon, Santoprene
Price Pump AOD 1” Metal
Price Pump AOD 1” Non-Metallic
1” AOD Metallic Performance Curve
1” AOD Plastic Performance Curve
1-1/2” Size Pumps
Max Flow Rate: 105 GPM (115 GPM for non-metallic)
Max Shut-Off Head: 250 Feet (230 Feet for non-metallic)
Max Air-Pressure: 125 psi (100 psi for non-metallic)
Max Dry Lift: 22 feet (18 feet for non-metallic)
Max Solid Size: 0.187” (0.281” for non-metallic)
Metallic: Aluminum, Cast Iron, 316 Stainless Steel
Non-Metallic: Polypropylene, Kynar (PVDF)
Elastomers and Balls: Neoprene, BUNA-N, Viton, Nordel, Teflon, Santoprene
Price Pump AOD 1.5” Metal-Clamp
Price Pump AOD 1.5” Metal-Bolted
Price P ump AOD 1.5” Non-Metallic
1.5” AOD Performance Curve
2” Size Pumps
Max Flow Rate: 230 GPM (215 GPM for non-metallic)
Max Shut-Off Head: 250 Feet (230 feet for non-metallic)
Max Air-Pressure: 125 psi (100 psi for non-metallic)
Max Dry Lift: 13 feet (19 feet for non-metallic)
Max Solid Size: 0.437” (0.409” for non-metallic)
Metallic: Aluminum, Cast Iron, 316 Stainless Steel
Non-Metallic: Polypropylene, Kynar (PVDF)
Elastomers and Balls: Neoprene, BUNA-N, Viton, Nordel, Teflon, Santoprene
Price Pump AOD 2” Metal-Clamp
Price Pump AOD 2” Metal-Bolted
Price Pump AOD 2” Non-Metallic
2” AOD Metallic Performance Curve
2” AOD Plastic Performance Curve
3” Size Pumps
Max Flow Rate: 213 GPM
Max Shut-Off Head: 230 Feet
Max Air-Pressure: 100 psi
Max Dry Lift: 5 feet
Max Solid Size: 0.400”
Metallic: Aluminum, Cast Iron, 316 Stainless Steel
Non-Metallic: Polypropylene
Elastomers and Balls: Neoprene, BUNA-N, Viton, Nordel, Teflon, Santoprene
Price Pump AOD 3” Metal-Clamp
Price Pump AOD 3” Metal-Bolted
Price Pump AOD 3” Non-Metallic
3” AOD Metallic Performance Curve
3” AOD Plastic Performance Curve
3” AOD Plastic w/Teflon Performance Curve
