PROCESS MARKET: ENERGY
Energy production, from mining natural resources, to generating plants, require special industrial pumps and air handling equipment that can survive harsh applications. Ober-Read offers a portfolio of products that are uniquely designed for these services. We offer Vulcan submersible pumps designed for the harshest slurry service, such as mining dewatering, coal tunnel sumps and fly ash runoff. Vulcan also designs and builds floating barges used with our pumps and other brands of vertical turbine pumps, on settling ponds. Gardner Denver blowers are offered in Gas Sealed versions to handle Methane and other gases that are transferred at power plants, and are the leading blower used in systems for pneumatic conveying of fly ash. Price Air-Operated Diaphragm pumps offer the best anti-stall air valve in the industry, and Nikuni KTM microbubble pumps are used to reduce requirements for oxidizing chemicals such as Hydrogen Peroxide in Frack Disposal and Ash Mine Dewatering treatment processes. Let Ober-Read find the best solution for your process pumping needs.
SOLIDS HANDLING SUBMERSIBLE PUMPS FOR MINING, POWER GEN, OIL AND GAS
HDS Series – High Chrome Cast Iron Pumps
Models: 10 models standard, 5 Low Head, 4 Medium Head, 1 High Head
Flow Rate: 3,500 GPM max
Max Head: 310 Feet (170 Feet on Medium Models)
Construction: ASTM A532 Cast Iron High-Chrome housing, 416SS Shaft, 17-4 Stainless Impeller, Slurry Mechanical Seal.
Motor: 7.5 – 200 HP, 3 phase, TENV, 460V, or 575V standard. XP optional
HDSS Series – Stainless Steel Pumps
Models: 10 models standard, 5 Low Head, 4 Medium Head, 1 High Head
Flow Rate: 3,500 GPM max
Max Head: 310 Feet (170 Feet on Medium Models)
Construction: CD4MCUN Duplex Stainless Steel housing, impeller and agitator, 316SS motor housing and stand, Slurry Mechanical Seal. Also available in Alloy 20, 2205 and 2207 materials
Motor: 7.5 – 200 HP, 3 phase, TENV, 460V, or 575V standard. XP optional
Floating – Barge Systems
Designs: All barges designed and approved by structural engineers. Balance based on maximum worst case thrust conditions of pumps to provide list-free operation, extending life of pump bearings.
Options: Simplex, Duplex, Triplex Vertical Turbine, Submersible or Horizontal Self-Priming Centrifugal versions
Walkways, railings, gangways to shore, roof covers over pumps and electronics
Construction: A36 Steel barge and float frames, HDPE molded floats filled with EPS foam to resist filling with water if punctured
Motor: AC, 1ph & 3ph, 50/60 Hz, and Brushless DC available to 3450 RPM
PNEUMATIC CONVEYING BLOWERS FOR POWER GENENERATION
Heliflow
Twisted lobe reduced pulsations and further drops noise level
Cycloblower HE
Screw type blower for larger systems. 20% better power efficiency and lower noise
IQ Blower Package Systems
The quietest option, a fully enclosed RBS or Cycloblower HE assembly
AIR-OPERATED DIAPHRAGM PUMPS FOR POWER MINING, POWER GEN, OIL and GAS

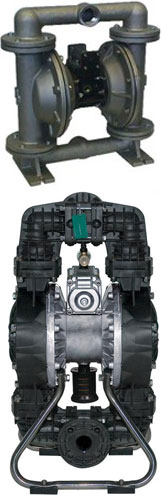

1-1/2” Size Pumps
Max Flow Rate: 105 GPM (115 GPM for non-metallic)
Max Shut-Off Head: 250 Feet (230 Feet for non-metallic)
Max Air-Pressure: 125 psi (100 psi for non-metallic)
Max Dry Lift: 22 feet (18 feet for non-metallic)
Max Solid Size: 0.187” (0.281” for non-metallic)
Metallic: Aluminum, Cast Iron, 316 Stainless Steel
Non-Metallic: Polypropylene, Kynar (PVDF)
Elastomers and Balls: Neoprene, BUNA-N, Viton, Nordel, Teflon, Santoprene
Price Pump AOD 1.5” Metal-Clamp
Price Pump AOD 1.5” Metal-Bolted
Price P ump AOD 1.5” Non-Metallic
1.5” AOD Performance Curve

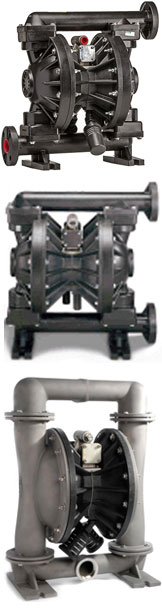

2” Size Pumps
Max Flow Rate: 230 GPM (215 GPM for non-metallic)
Max Shut-Off Head: 250 Feet (230 feet for non-metallic)
Max Air-Pressure: 125 psi (100 psi for non-metallic)
Max Dry Lift: 13 feet (19 feet for non-metallic)
Max Solid Size: 0.437” (0.409” for non-metallic)
Metallic: Aluminum, Cast Iron, 316 Stainless Steel
Non-Metallic: Polypropylene, Kynar (PVDF)
Elastomers and Balls: Neoprene, BUNA-N, Viton, Nordel, Teflon, Santoprene
Price Pump AOD 2” Metal-Clamp
Price Pump AOD 2” Metal-Bolted
Price Pump AOD 2” Non-Metallic
2” AOD Metallic Performance Curve
2” AOD Plastic Performance Curve

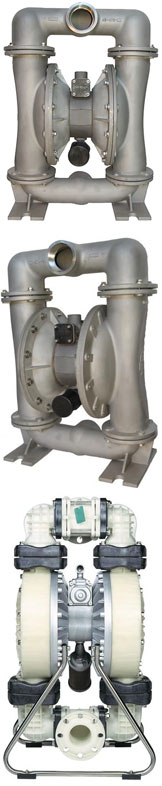

3” Size Pumps
Max Flow Rate: 213 GPM
Max Shut-Off Head: 230 Feet
Max Air-Pressure: 100 psi
Max Dry Lift: 5 feet
Max Solid Size: 0.400”
Metallic: Aluminum, Cast Iron, 316 Stainless Steel
Non-Metallic: Polypropylene
Elastomers and Balls: Neoprene, BUNA-N, Viton, Nordel, Teflon, Santoprene
Price Pump AOD 3” Metal-Clamp
Price Pump AOD 3” Metal-Bolted
Price Pump AOD 3” Non-Metallic
3” AOD Metallic Performance Curve
3” AOD Plastic Performance Curve
3” AOD Plastic w/Teflon Performance Curve
MICROBUBBLE PUMPS FOR FRACK DISPOSAL AND ASH MINE DEWATERING
KTM Microbubble Pumps
Models: 9 sizes, KTM20 – KTM80
Construction: Cast Iron, 313 SS Fitted, or All 313 SS, Carbon v SiC seal w Viton
Flow: 4.4 – 254 GPM
Motors 3 ph, UL Listed, 1 – 40 HP, 3600 RPM up to 5 HP, 1800 RPM above 5 HP
KTM DAF Brochure
Nikuni KTM Microbubble Pump Everglades Project
Nikuni Case Study – Philly Industrial Water Treatment DAF Retrofit
KTM Video
Press Release
KTM20 Performance Curve-60 Hz
KTM25 Performance Curve-60 Hz
KTM32 Performance Curve-60 Hz
KTM40 Performance Curve-60 Hz
KTM50-1 Performance Curve-60 Hz
KTM50-2 Performance Curve-60 Hz
KTM50-3 Performance Curve-60 Hz
KTM65 Performance Curve-60 Hz
KTM80 Performance Curve-60 Hz
